Plant Physiology 155: 1851-1870 (2011)

**Regulation of seed germination in the close Arabidopsis relative Lepidium sativum: A global tissue specific transcript analysis**

Karl Morris, Ada Linkies, Kerstin Müller, Krystyna Oracz, Xiaofeng Wang, James R. Lynn, Gerhard Leubner-Metzger, William E. Finch-Savage

School of Life Sciences, Warwick University, Wellesbourne, Warwick CV35 9EF, UK (Ka.M., J.R.L., W.E.F.-S.)
University of Freiburg, Faculty of Biology, Institute for Biology II, Botany / Plant Physiology, Schänzlestr. 1, D-79104 Freiburg, Germany (A.L., Ke.M., K.O., G.L.-M.)
College of Life Sciences, South China Agricultural University, Guangzhou 510642, China (X.W.)
Department of Biological Sciences, Simon Fraser University, 8888 University Drive, Burnaby BC V5A 1S6, Canada (Ke.M.)

Received November 23, 2010; accepted February 7, 2011; published February 14, 2011
DOI 10.1104/pp.110.169706

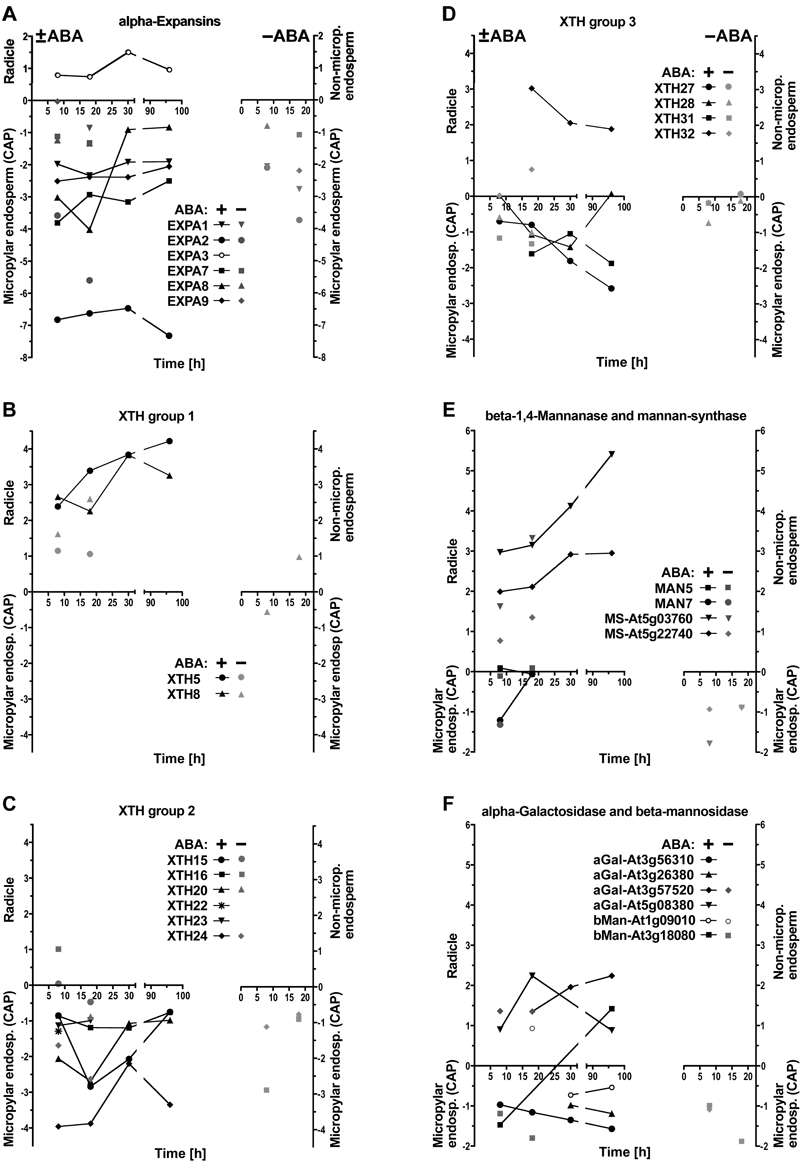

Figure 5: Relative abundance of transcripts in the CAP, RAD or NME for genes related to cell wall modification. A logarithmic scale is used to quantitatively indicate if a transcript is more abundant in the CAP (below the x-axes, negative value, p≤0.1), RAD, or NME (above the x-axes, positive value, p≤0.1).
A, alpha-expansins, B, XTH group 1, C, XTH group 2, D, XTH group 3, E, beta-1,4-mannanase and mannan synthase, F, alpha-galactosidase and beta-mannosidase.
Key indentifies genes and which arrays (+ABA or -ABA array, left (±ABA) or right (-ABA) part of graphs) the data is from.
